Estara Architectural Solar Bollard | Greenshine New Energy

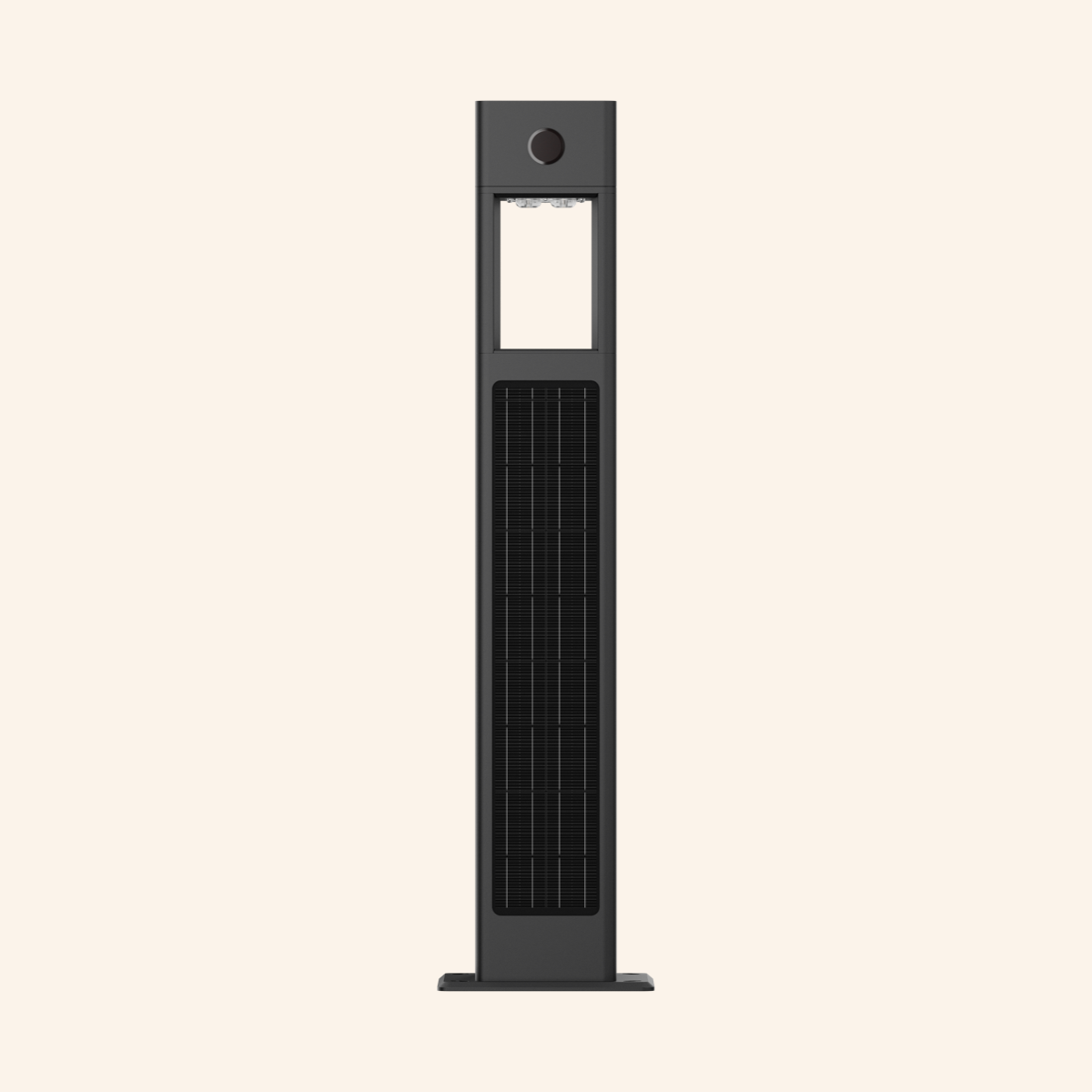

Estara architectural solar bollard in Black RAL 9005, front view

ESTARA OVERVIEW

Architectural Lighting Without the Trenching.

Estara brings refined vertical geometry and off-grid illumination to pathways, plazas, parks, campuses, hospitality environments, and pedestrian spaces.

Each self-contained fixture integrates its solar module, LED light source, LiFePO4 battery, and controller—helping projects avoid electrical trenching and inter-fixture wiring.

Off-grid by design

No utility connection or inter-fixture wiring.

Two coordinated scales

ESTARA-90 and ESTARA-110.

Project-specific planning

Final placement confirmed through a lighting layout.

SAMPLE-STAGE AVAILABILITY

Estara is currently in the sample stage.

Contact our sales team to review preliminary specifications, discuss sample configurations, and request an evaluation sample. Final production specifications, options, and availability remain subject to confirmation.

CONTACT SALES / REQUEST A SAMPLE

Quick Facts

STANDARD MODELS	ESTARA-90 / ESTARA-110
LUMINOUS OUTPUT	2,000–2,400 lm
RECOMMENDED SPACING	13–16 ft on center (approximately 4–5 m)
RAINY-DAY AUTONOMY	Target: 2 days (TBD)
PROTECTION	IP65 / IK08
DARK-SKY CONFIGURATION	2200 K / 3000 K options available; compliance verification TBD
WARRANTY	5 years

Recommended Applications

Pedestrian pathways · Parks and recreation areas · Plazas and public spaces · Campuses · Residential communities · Hospitality and resort environments

Project Resources

Product Catalog

File TBD

Cut Sheet

File TBD

Photometric & Installation

Files TBD

Project Planning Note

The preliminary recommended spacing is 13–16 ft on center. Final spacing must be confirmed through a project-specific photometric layout, required light levels, and site conditions.

IES FILES

SPECIFICATIONS

STANDARD MODELS	ESTARA-90 / ESTARA-110
OVERALL HEIGHT	ESTARA-90: 35.4 in / 900 mm ESTARA-110: 43.3 in / 1,100 mm
HOUSING SIZE	6.3 × 6.3 in / 160 × 160 mm
LED POWER	ESTARA-90: 10 W ESTARA-110: 12 W
LUMINOUS OUTPUT	ESTARA-90: 2,000 lm ESTARA-110: 2,400 lm
SOLAR MODULE	ESTARA-90: 48 Wp ESTARA-110: 56 Wp
BATTERY	ESTARA-90: 3.2 V / 30 Ah LiFePO4 ESTARA-110: 3.2 V / 36 Ah LiFePO4
BATTERY CYCLE LIFE	4,000 cycles at 80% DOD
COLOR TEMPERATURE	2200 K / 3000 K / 4000 K / 6000 K
COLOR RENDERING	CRI ≥ 70
RECOMMENDED SPACING	13–16 ft on center (approximately 4–5 m)
RAINY-DAY AUTONOMY	Target: 2 days (TBD)
WEIGHT	ESTARA-90: TBD ESTARA-110: TBD
INGRESS / IMPACT	IP65 / IK08
STANDARD FINISH	Black, RAL 9005
OPTIONAL FINISHES	TBD
HOUSING MATERIAL	Aluminum alloy
LIGHT DISTRIBUTION	TBD
CONTROLS / OPERATING PROFILE	TBD
MOUNTING / FOUNDATION	TBD
OPERATING TEMPERATURE	TBD
DARK-SKY CONFIGURATION	2200 K / 3000 K options available; compliance verification TBD
WARRANTY	5 years
